AffordanceWAM: Affordance-Aware JointWorld–Action Modeling for Robot Manipulation

Learning a shared interaction space where human video teaches the World—and robot experience teaches Action.

Jiadi You^1,3,†Qize Yu^2,†Yue Chen²Minghong Cai⁴Zhide Zhong³Yuran Wang⁵Bowen Ping²Jiaqi Liang²Zhenhao Shen²Haodong Yan³Yinchuan Li⁶Ruihai Wu²Xiaojuan Qi^1,*Yingcong Chen^3,*

¹The University of Hong Kong²Peking University³The Hong Kong University of Science and Technology (Guangzhou)⁴The Chinese University of Hong Kong⁵National University of Singapore⁶Knowin AI

† Equal contribution * Corresponding authors

arXivCode · Coming soon

At a glance

One interface for two embodiments

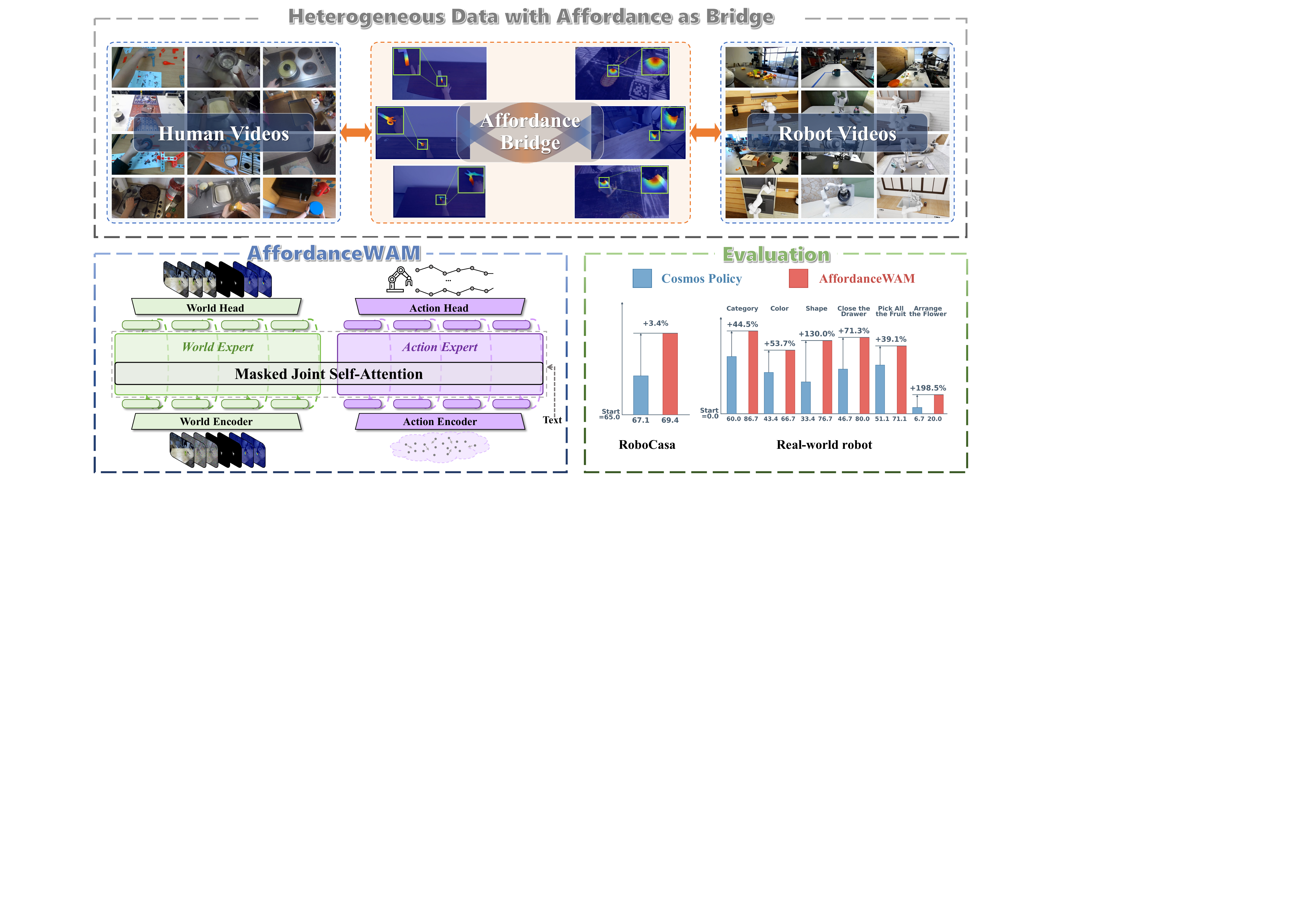

Human and robot video connected through affordance-aware World and Action modeling — A shared object-focused affordance representation bridges heterogeneous human–robot data with joint World and Action modeling.

Paper overview

Abstract

Generalizable robot manipulation requires predicting how a scene will evolve, identifying where interactions are feasible, and determining how to act.

We introduce AffordanceWAM, an affordance-aware generative World Action Model that represents object-centric spatiotemporal affordance through Scalar Affordance and Affordance Heatmap within the generated future World. These complementary targets ground visual prediction in task-relevant objects and interaction regions, providing a shared interaction interface across human and robot videos.

Built on a pretrained video diffusion Transformer, separately parameterized World and Action Experts use Masked Joint Self-Attention to jointly predict future RGB, Scalar Affordance, Affordance Heatmaps, and continuous actions under a unified flow-matching objective. Human videos supervise all three World streams; robot trajectories additionally supervise actions, enabling transfer without human action labels or retargeting.

Key findingAffordance turns heterogeneous human video from a source of negative transfer into scalable supervision for robot control.

Architecture

Joint World–Action modeling

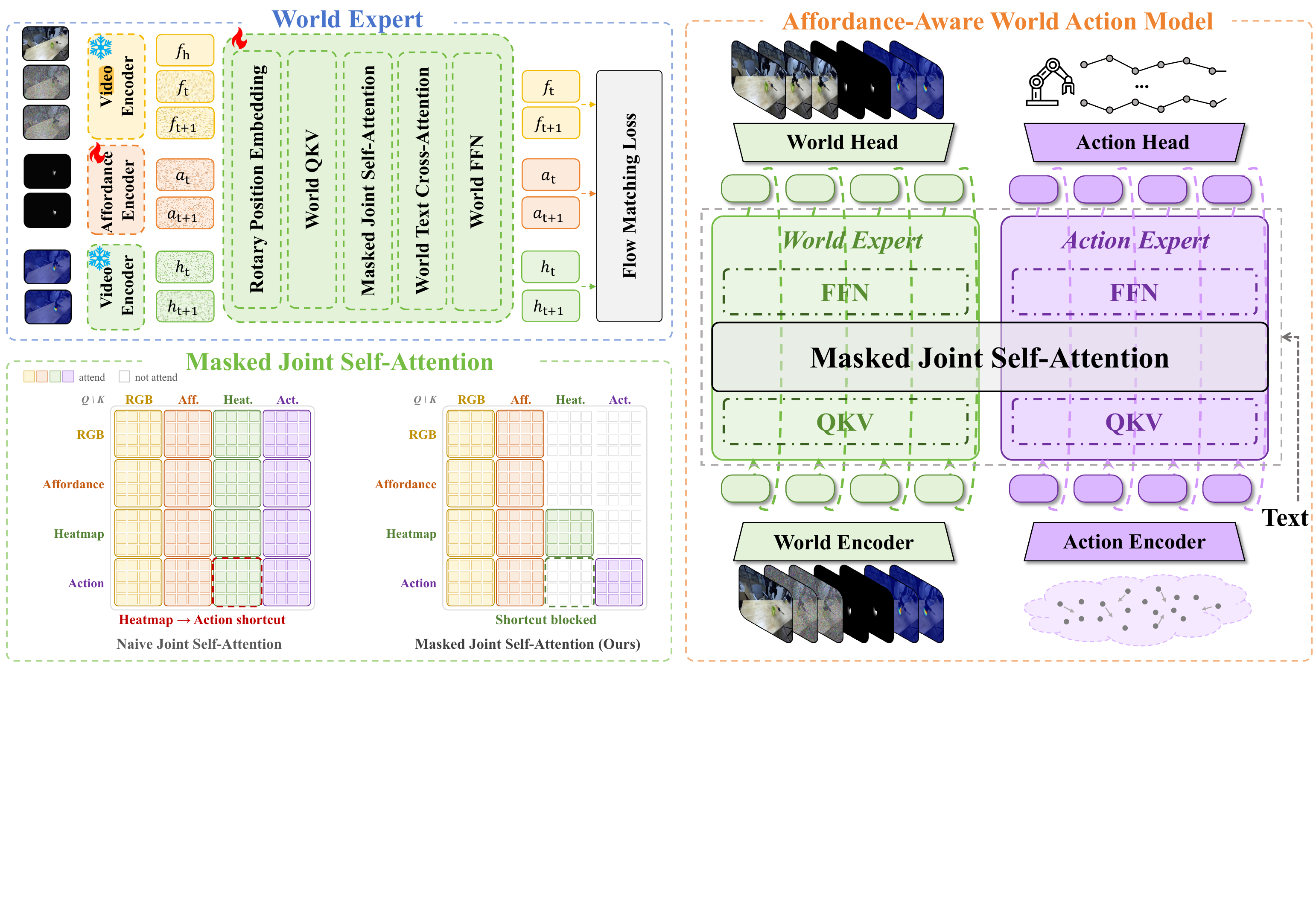

AffordanceWAM couples two separately parameterized diffusion Transformers through directional attention. The World Expert learns what changes; the Action Expert learns how the robot should act.

World and Action Experts coupled through Masked Joint Self-Attention — Action reads RGB and Scalar Affordance features at each layer. The mask blocks Action-to-World flow and excludes Affordance Heatmap features from Action, including indirect paths through the other World streams.

World Expert

Predict interaction-centered futures

Forecasts twelve future frames of RGB, Scalar Affordance, and Affordance Heatmap from five observed RGB frames and a language instruction.

↗

Masked joint attention

Control the direction of information

Action reads RGB and Scalar Affordance. Heatmap remains auxiliary World supervision, reducing an additional RGB-rich pathway while preserving direct RGB access.

Action Expert

Generate continuous controls

Generates a 12 × 7 continuous action chunk from language, proprioception, noisy actions, and evolving RGB and Scalar Affordance features.

RGB

How the scene evolves

Predicts appearance, object motion, and scene-state changes.

Scalar Affordance

Where to interact

A scalar field identifies task-relevant objects and interaction regions without prescribing motor commands.

Affordance Heatmap

Connect regions to objects

Rendering the field on RGB provides auxiliary supervision that encourages spatial consistency with the visual World.

300+ hrsegocentric human video

≈0.4Mrobot trajectories

5 → 12observed → predicted frames

1 : 1human–robot Stage-I sampling

Stage I

Heterogeneous joint pre-training

World-only warmup precedes gradual Action supervision. Human clips train all three World streams; robot clips also train Action. The curriculum shifts toward joint noisy-World training and replaces clean fixed-World targets with model predictions.

Stage II

Task-specific post-training

Freeze the complete World path and adapt only Action using robot demonstrations without affordance labels. 75% of samples use noisy World features; 25% use completed predicted Worlds. Both paths stop gradients at the World interface.

Inference · joint generation

Generate World and Action together

35 World steps and 35 Action steps exchange layer-wise features during generation.

Inference · final refinement

Refine Action under a completed World

Hold the predicted World fixed for 8 Action-only refinement steps (strength 0.25), then execute the refined chunk.

Evaluation

Results across simulation and reality

RoboCasa69.4%

Average success rate

+2.3 pts vs. Cosmos Policy

CALVIN ABC→D4.22

Average sequence length

Best across all reported metrics

Real-world basic tasks74.7%

Macro-average success

+32.0 pts vs. Cosmos Policy

Simulation

RoboCasa

Task-specific household manipulation with 300 demonstrations per task for AffordanceWAM.

Average success rate (%)

GR00T-N1300 demos / task

49.6%

UVA50 demos / task

50.0%

UWM1,000 demos / task

60.8%

π₀300 demos / task

62.5%

GR00T-N1.5300 demos / task

64.1%

Cosmos Policy50 demos / task

67.1%

AffordanceWAM300 demos / task

69.4%

Demonstration budgets differ across methods; controlled ablations isolate the effects of affordance and human video.

View benchmark data

RoboCasa results
Method	Demos / task	Average SR (%)
GR00T-N1	300	49.6
UVA	50	50.0
UWM	1,000	60.8
π₀	300	62.5
GR00T-N1.5	300	64.1
Cosmos Policy	50	67.1
AffordanceWAM	300	69.4

Generalization

CALVIN ABC→D

Train on environments A, B and C; evaluate five-task sequences in unseen environment D.

CALVIN ABC→D · consecutive-task success (%) and average length
Method	1/5	2/5	3/5	4/5	5/5	Avg. len.
SuSIE	87.0	69.0	49.0	38.0	26.0	2.69
GR-1	85.4	71.2	59.6	49.7	40.1	3.06
OpenVLA	91.3	77.8	62.0	52.1	43.5	3.27
CLOVER	96.0	83.5	70.8	57.5	45.4	3.53
UniVLA	95.5	85.8	75.4	66.9	56.5	3.80
π₀	93.8	85.0	76.7	68.6	60.1	3.84
Seer	94.4	87.2	79.9	72.2	64.3	3.98
VPP	95.3	88.2	80.3	72.9	64.5	4.01
AffordanceWAM	96.1	92.8	85.5	77.8	69.5	4.22

Mechanism

Affordance unlocks human data

Without a shared affordance target, additional human video hurts performance. With affordance, the same data produces clear gains.

Robot only · no affordance57.3%RoboCasa3.75CALVIN

+ Human · no affordance55.1%RoboCasa ↓2.23.68CALVIN ↓0.07

Robot only · + affordance63.7%RoboCasa3.91CALVIN

+ Human · + affordance69.4%RoboCasa ↑5.74.22CALVIN ↑0.31

Architecture ablations

Why the World interface matters

Mean ± sample SD. Data and update budgets are fixed; fusion and masking controls also match token count and trainable parameters.

Architectural ablations · RoboCasa success (%) and CALVIN average length
Variant	RoboCasa	CALVIN
Masked Joint Self-Attention	69.4 ± 0.5	4.22 ± 0.01
Late fusion	65.9 ± 0.6	4.00 ± 0.01
Independent World → Action	64.5 ± 0.6	3.90 ± 0.01
Open Affordance Heatmap → Action	63.5 ± 0.6	3.85 ± 0.01
w/o predicted-World post-training	66.6 ± 0.6	4.06 ± 0.01
w/o Affordance Heatmap stream	65.4 ± 0.6	3.99 ± 0.01

Removing the Heatmap stream is a component ablation. Removing predicted-World post-training changes training exposure, not inference-time refinement.

Scaling

More human interaction experience, stronger control

Robot-data exposure and training updates remain fixed while affordance-annotated human video increases.

RoboCasa success rate (%)

Robot supervision held fixed

Select a point to inspect its success rate.

Vertical axis: 62–71%. Robot-data exposure and training updates are fixed.

View source data

Human-data scaling · RoboCasa success rate (%)
Human data	Success rate
0%	63.7
20%	63.9
40%	64.3
60%	65.2
80%	67.1
100%	69.4

Scaling resultThe first 60% adds 1.5 points; the final 40% adds 4.2 points—about 74% of the total gain.

Physical deployment

Real-world manipulation

Eight tasks, identical 50-trajectory adaptation budgets, and 15 evaluation trials per task.

Real-world success rate (%)

AffordanceWAMCosmos Policy

Fruit → Plate

86.7%

60.0%

Cup

60.0%

40.0%

Duck

73.3%

46.7%

Carrot

86.7%

40.0%

Spatula

66.7%

26.7%

50 adaptation trajectories and 15 trials per task for both methods. Fruit thresholds measure stages of the same task.

View all real-world results

Success rates (%) · all tasks and fruit-placement thresholds
Task / threshold	Cosmos Policy	AffordanceWAM
Fruit → Plate	60.0	86.7
Cup	40.0	60.0
Duck	46.7	73.3
Carrot	40.0	86.7
Spatula	26.7	66.7
Close the Drawer	46.7	80.0
Pick All the Fruit · ≥1	73.3	86.7
Pick All the Fruit · ≥2	53.3	73.3
Pick All the Fruit · ≥3	26.7	53.3
Arrange the Flower	6.7	20.0

Language-conditioned selection

Basic tasks

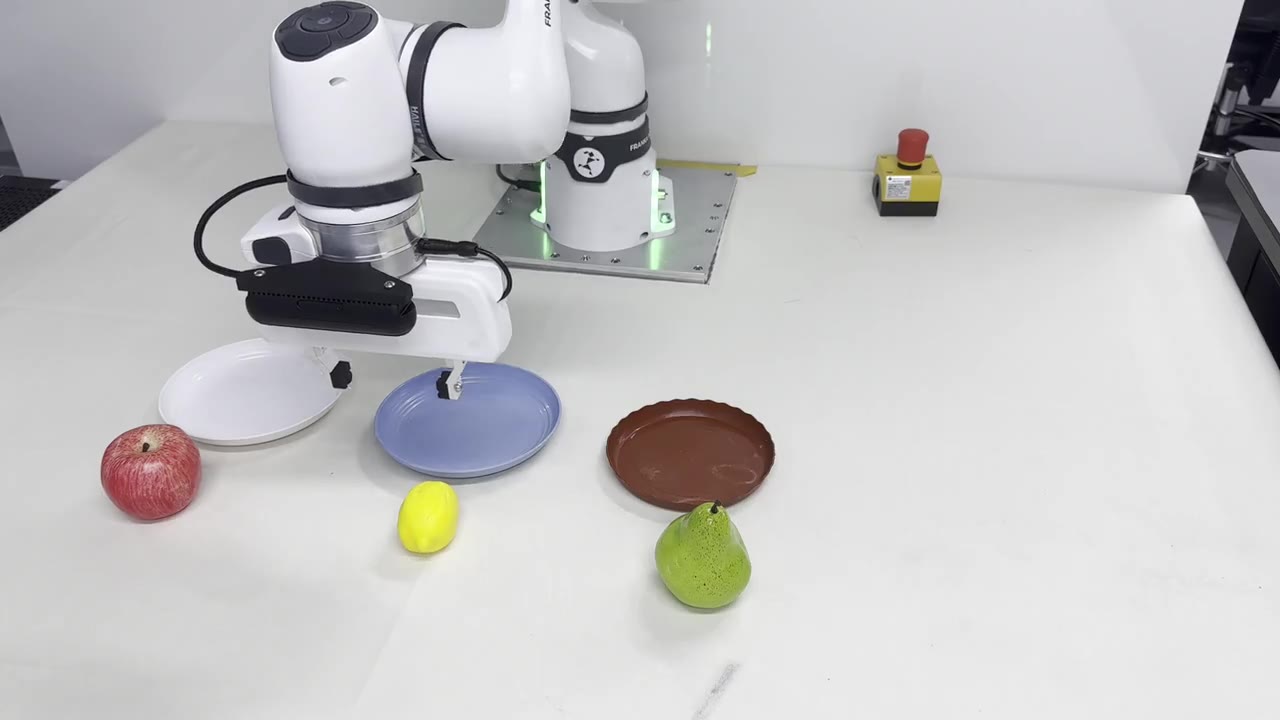

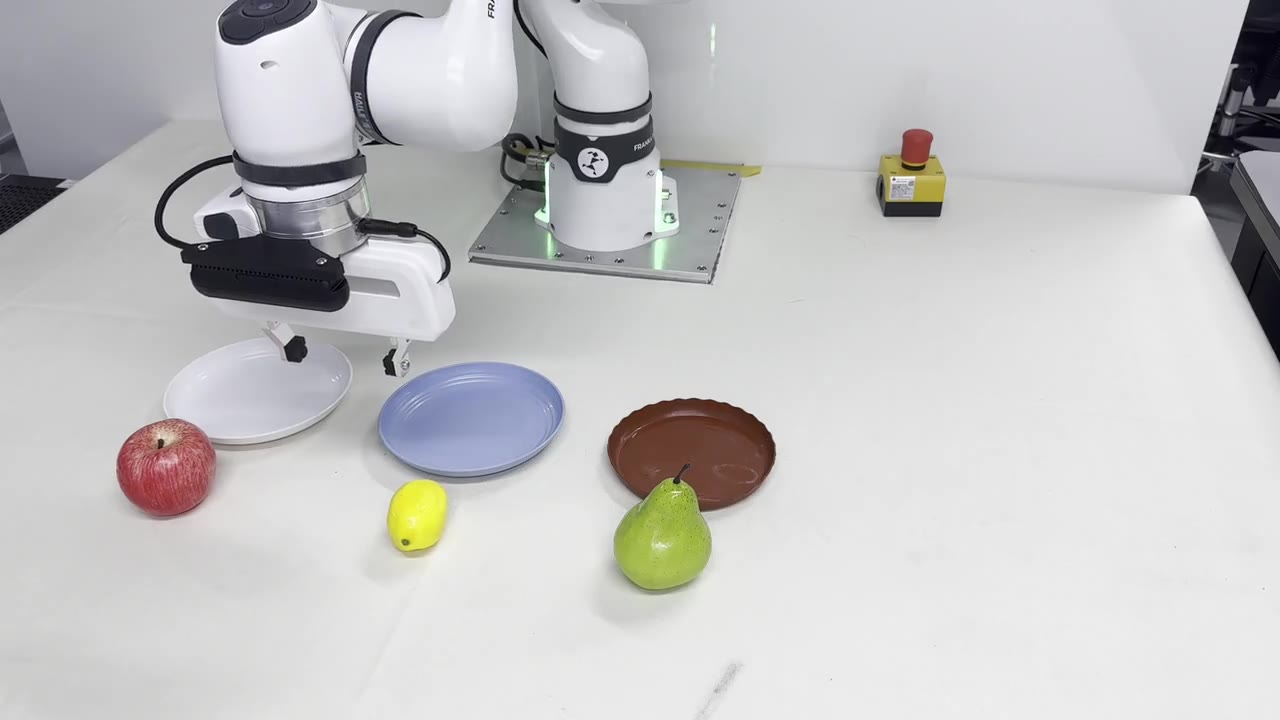

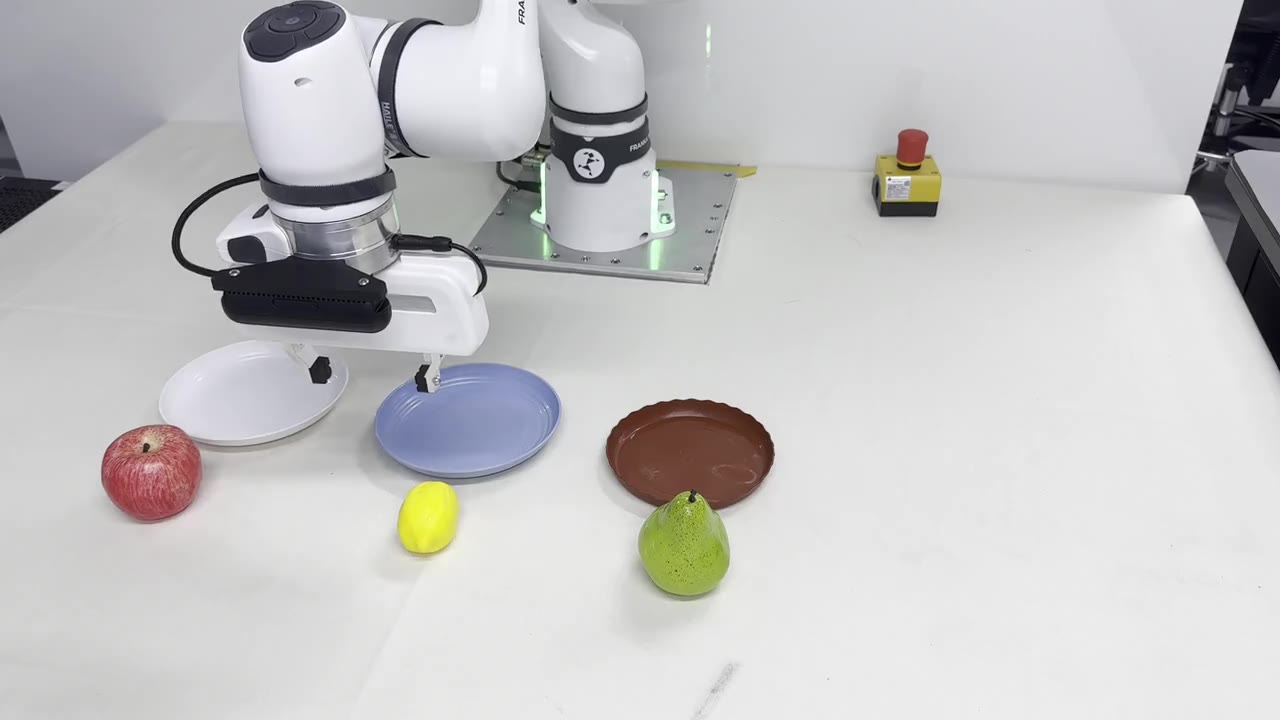

Select and place the instructed fruit on the plate.

4× · Muted

CategoryApple

Stateful and long-horizon execution

Complex tasks

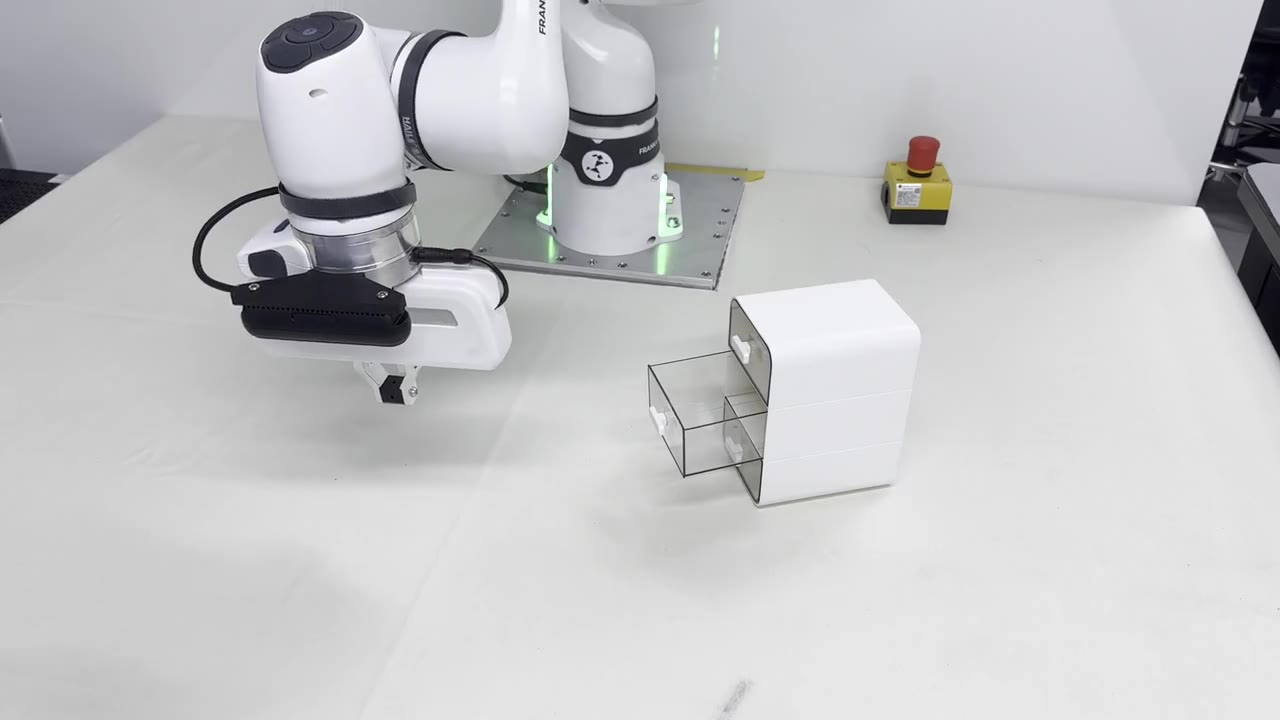

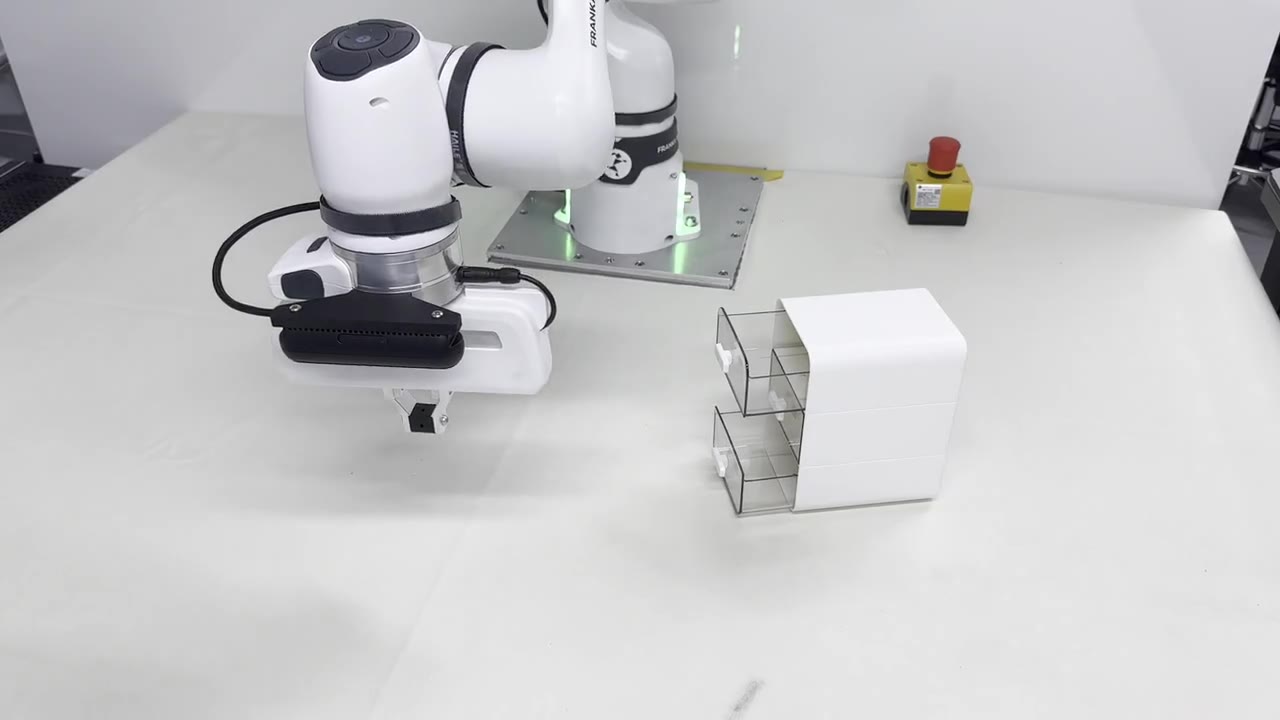

Close drawers from distinct initial configurations.

4× · Muted

State transitionFirst Drawer

Fruit → plate86.7%vs. 60.0%

Close drawer80.0%vs. 46.7%

≥3 fruits53.3%vs. 26.7%

Arrange flower20.0%vs. 6.7%

Reference

Citation

The arXiv identifier and public project links will be updated when the preprint is released.

@article{you2026affordancewam,
  title   = {AffordanceWAM: Affordance-Aware Joint World--Action
             Modeling for Robot Manipulation},
  author  = {You, Jiadi and Yu, Qize and Chen, Yue and Cai, Minghong
             and Zhong, Zhide and Wang, Yuran and Ping, Bowen
             and Liang, Jiaqi and Shen, Zhenhao and Yan, Haodong
             and Li, Yinchuan and Wu, Ruihai and Qi, Xiaojuan
             and Chen, Yingcong},
  journal = {arXiv preprint},
  year    = {2026}
}
